Trusst 12in. x 12in. Box Truss 6-Way Corner Block
Details

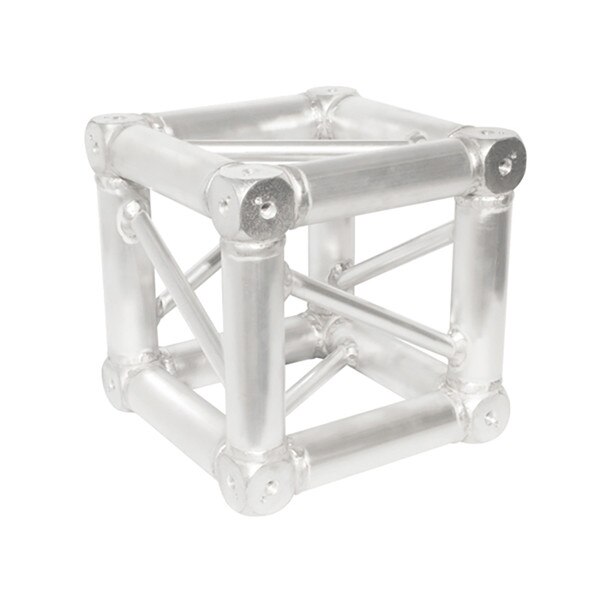

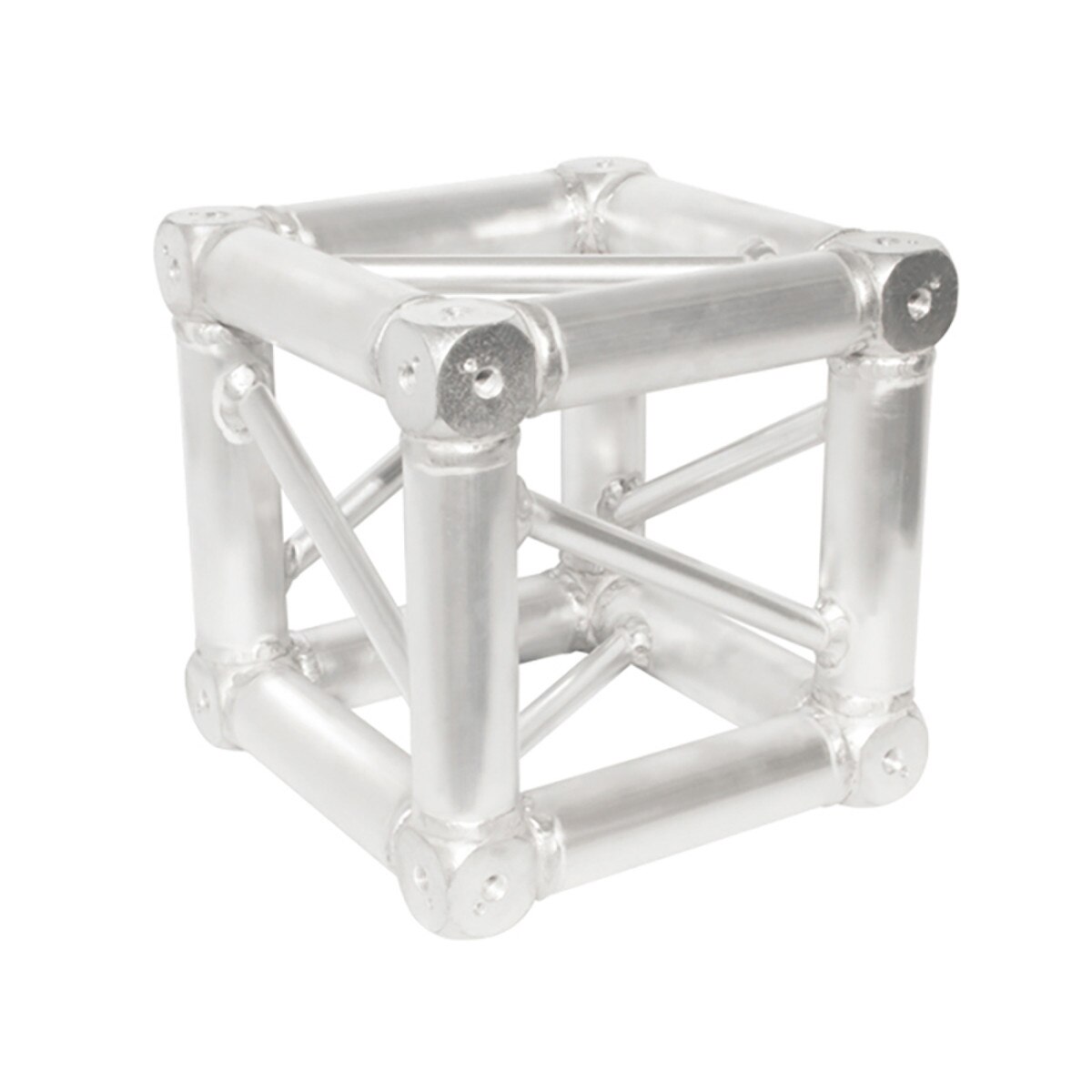

6-way Corner Block is our most versatile corner piece. It connects up to six pieces of Trusst's 12-inch (290-millimeter) wide piece of Truss at once. You can purchase additional sets of connecting hardware to use with this Corner Block (item number CTCONKIT6WAY).
Trusst Angles QRG.pdf
Features:
- Manufactured from high-grade and lightweight aluminum which is easy for transportation and setup
- Compatible with all sticks and corners to create an astonishing and custom presentation
- Includes 1 corner block and 2 sets of connecting hardware
Specifications:
- Outer diameter tube: 2 in (50 mm)
- Dimensions: 11.42 x 11.42 in (290 x 290 mm)
- Diagonal bracing: 0.75 in (20 mm)
- Wall thickness: 0.08 in (2 mm)
- Weight: 18.30 lbs (8.3 kg)
- Approvals: SLV
Trusst Angles QRG.pdf
