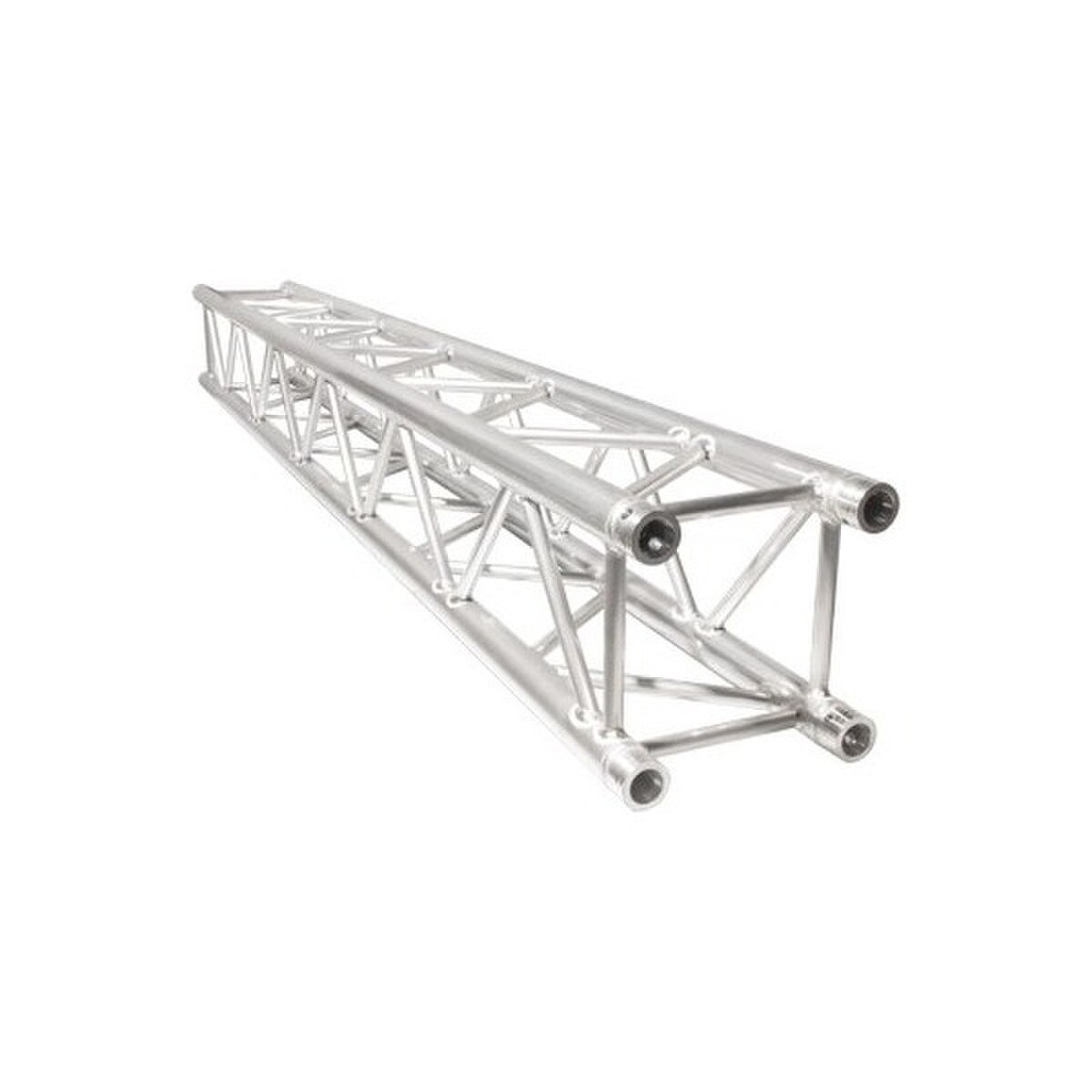

TRUSST 12in. x 12in. Box Truss - 8.2' (2.5m) Length

TRUSST® is comprised of modular aluminum components that combine to create nearly limitless configurations. Truss measuring 2.5 meters (8.2 ft) for a multitude of applications when used in combination with TRUSST® Corners, Base Plates, Accessories and Clamps.

TRUSST® CT-290 series 290 mm box truss is available in a variety of lengths from 0.25 m to 3 m (0.8 – 9.84 ft)) to suit most design demands. All TRUSST® sticks are TUV certified and all TRUSST® items are fabricated by SLV certified welders and made from 6082-T6 alloy aluminum. TRUSST® products use a standard conical connection system which allows for quick assembly while maintaining sound structural stability. TRUSST® works seamlessly with other major brands that utilize the same conical connection.

Features:

• Manufactured from high-grade and lightweight aluminum which is easy for transportation and setup
• Independently tested and TUV-certified for safety and uniformity
• Carefully crafted by SLV-certified welders
• Compatible with many TRUSST® accessories to create an astonishing and custom presentation

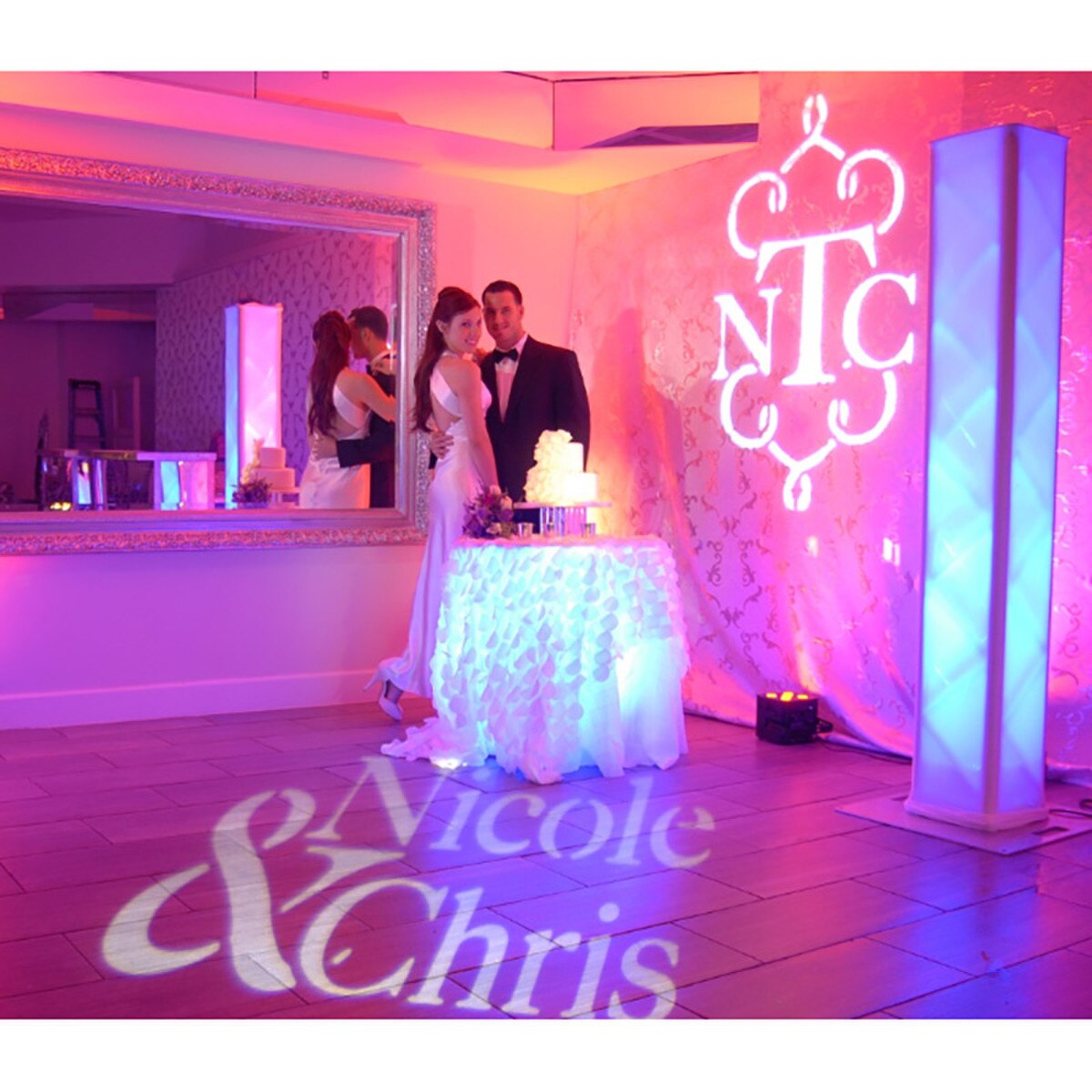

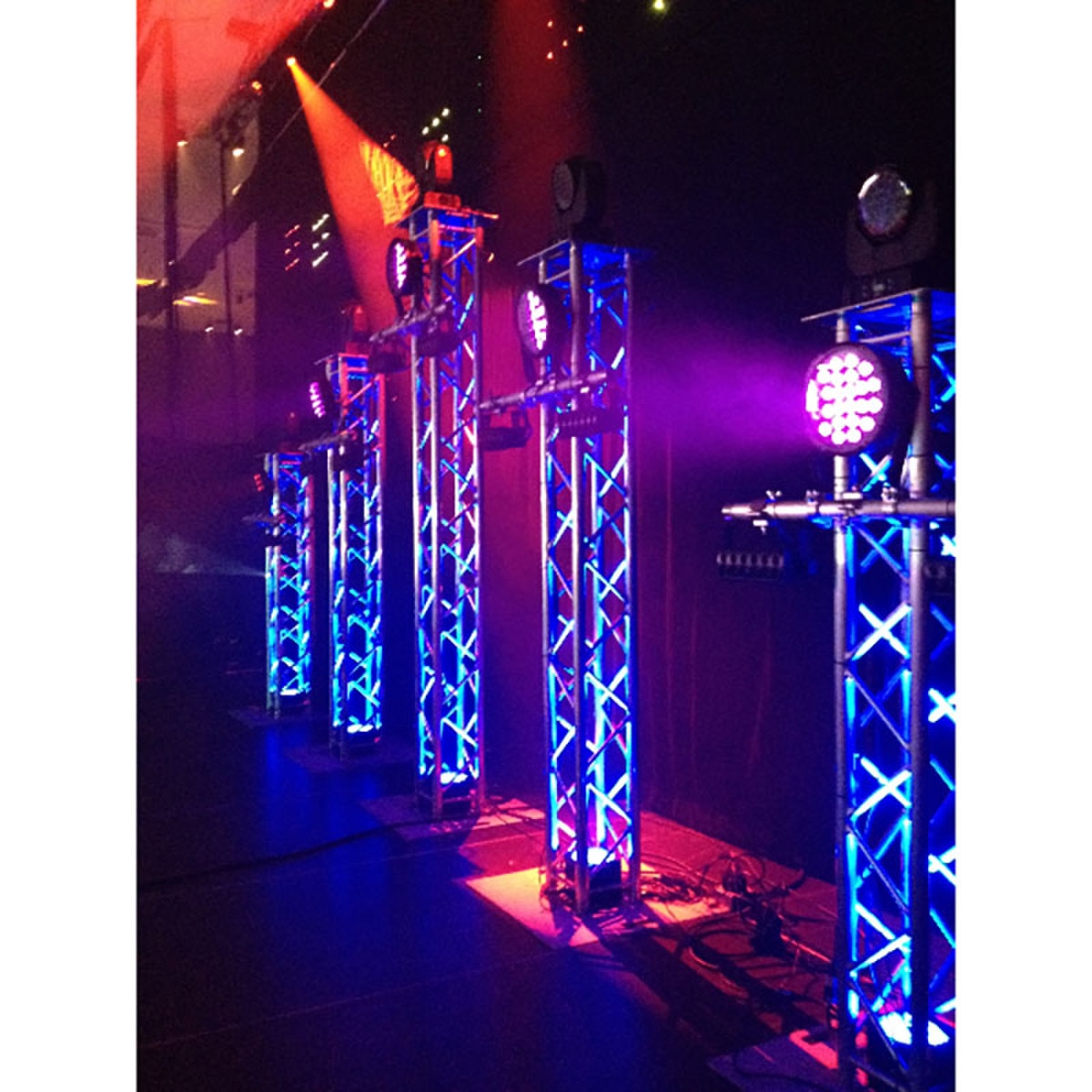

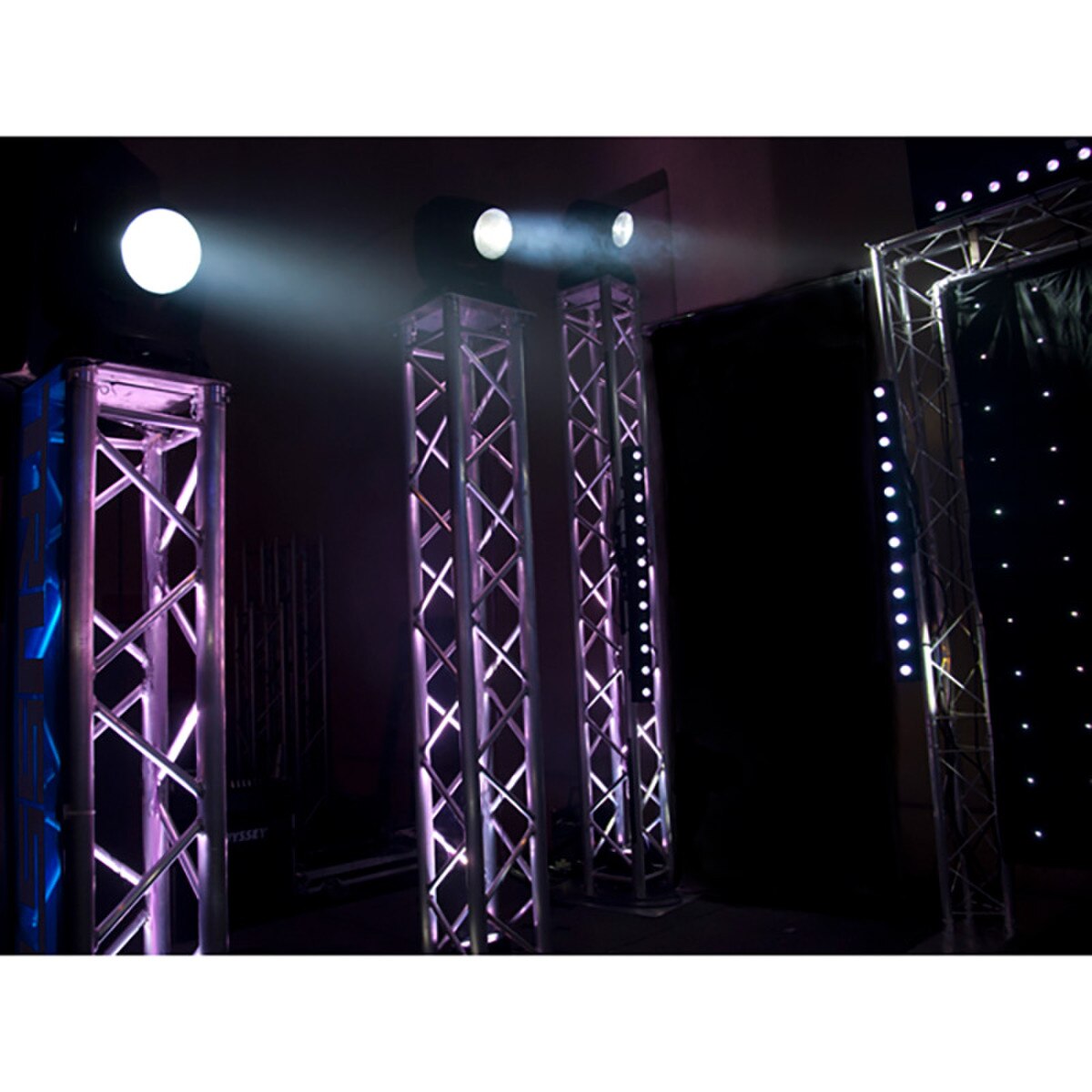

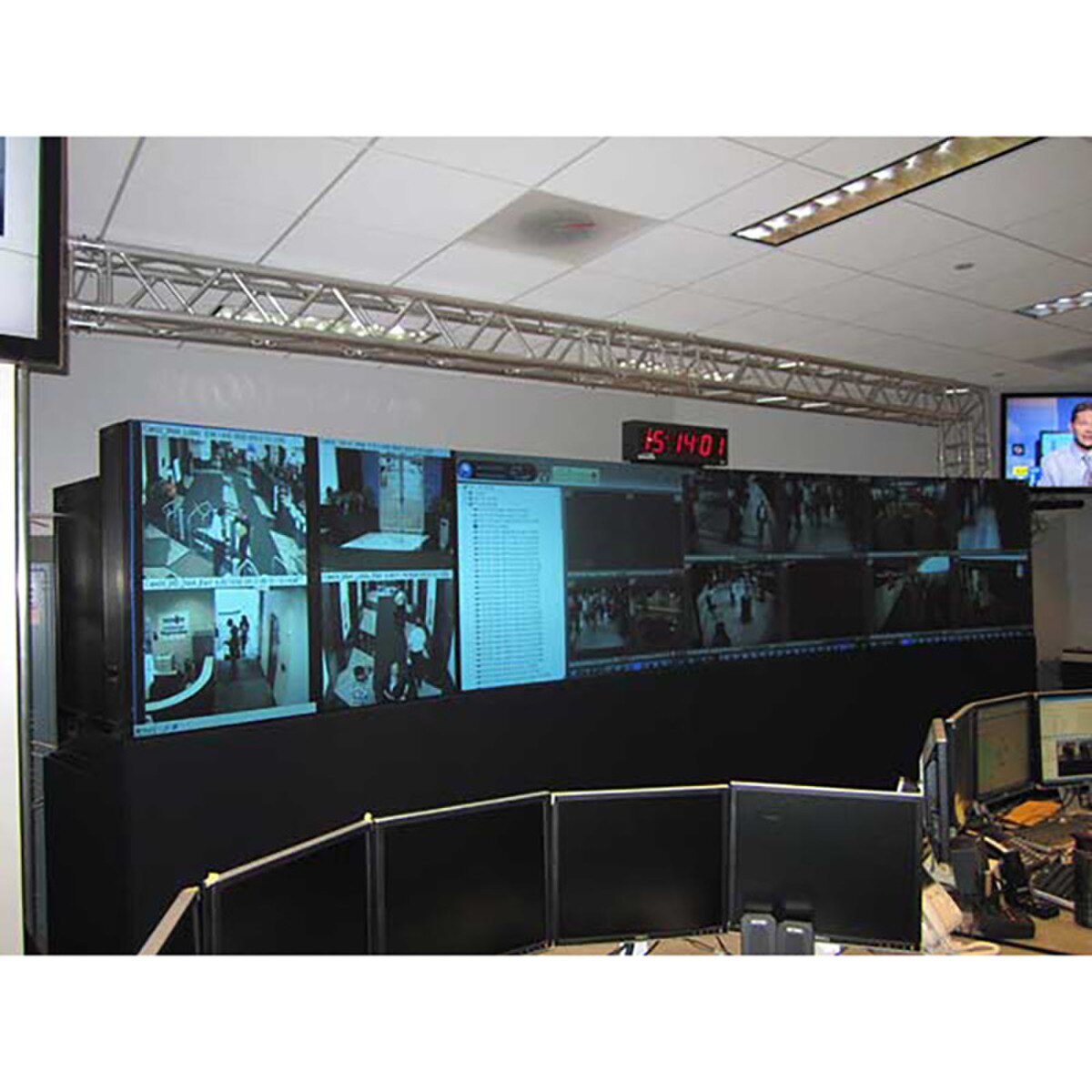

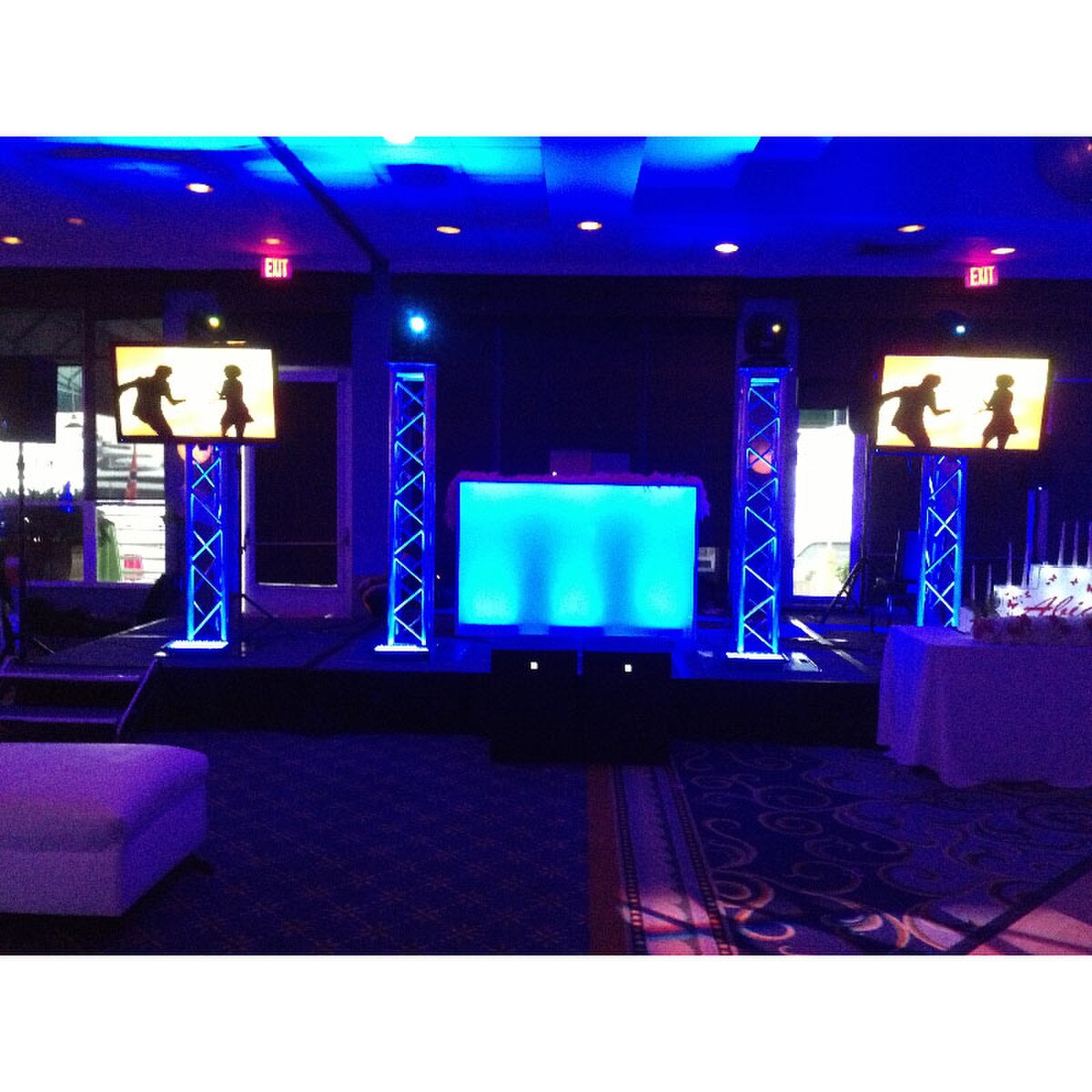

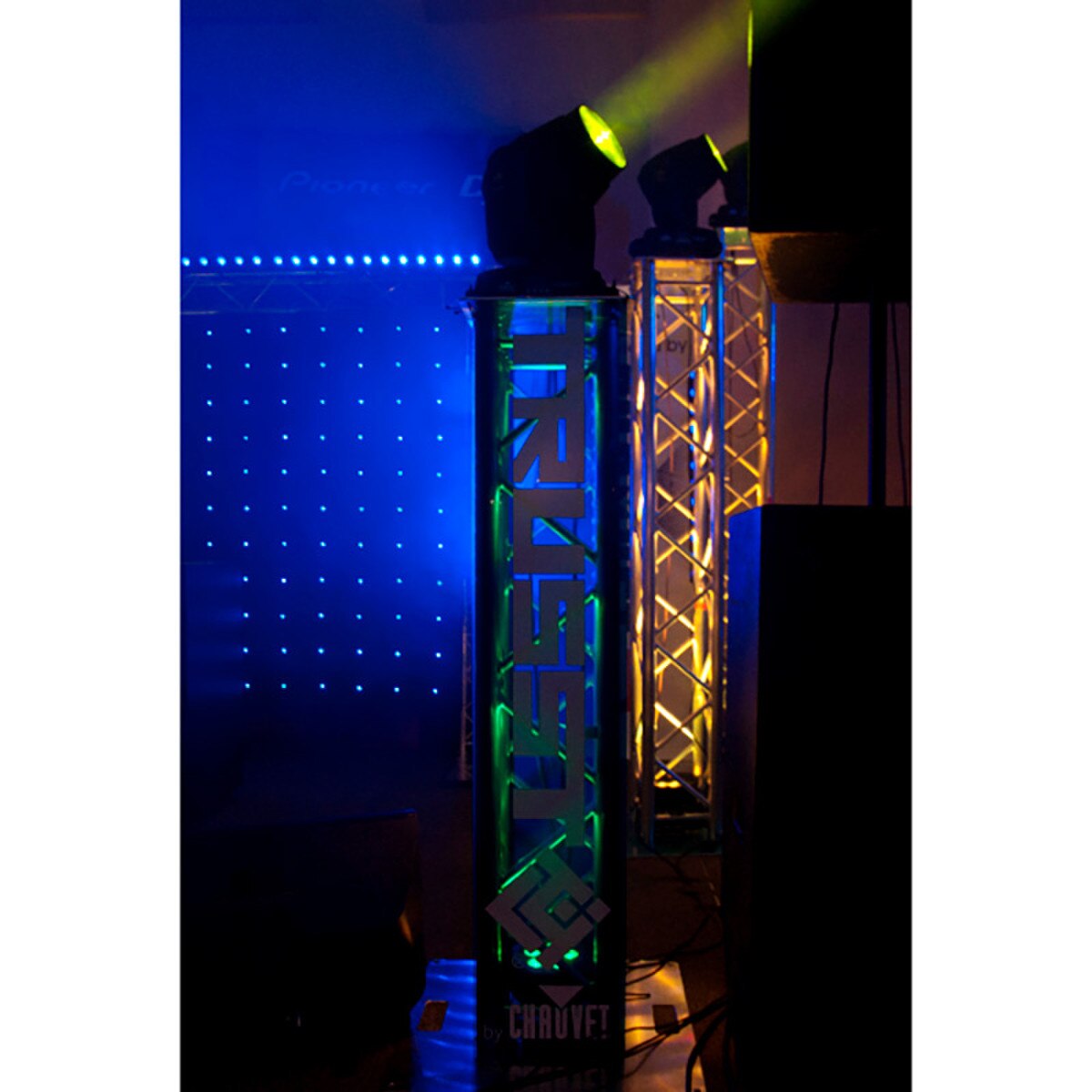

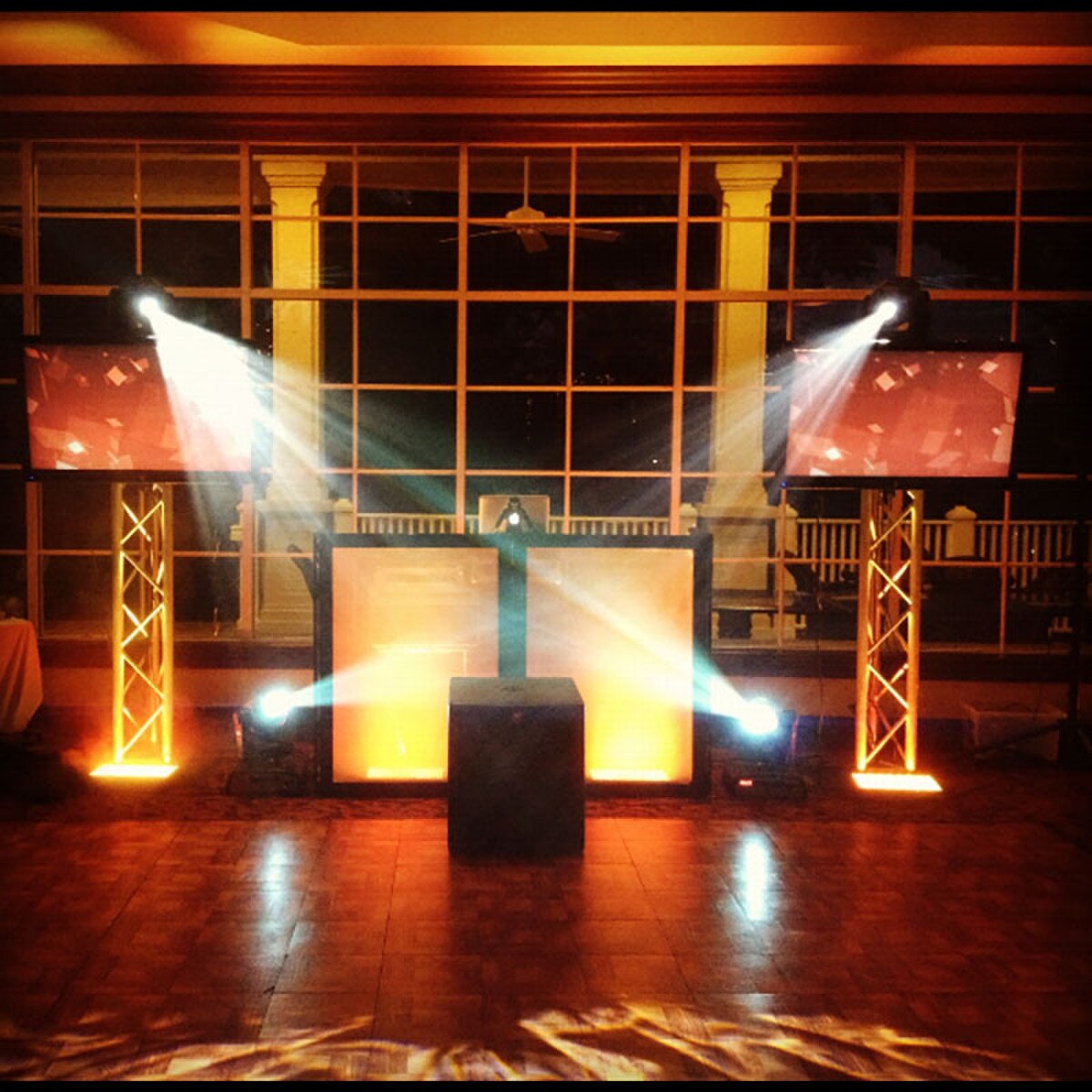

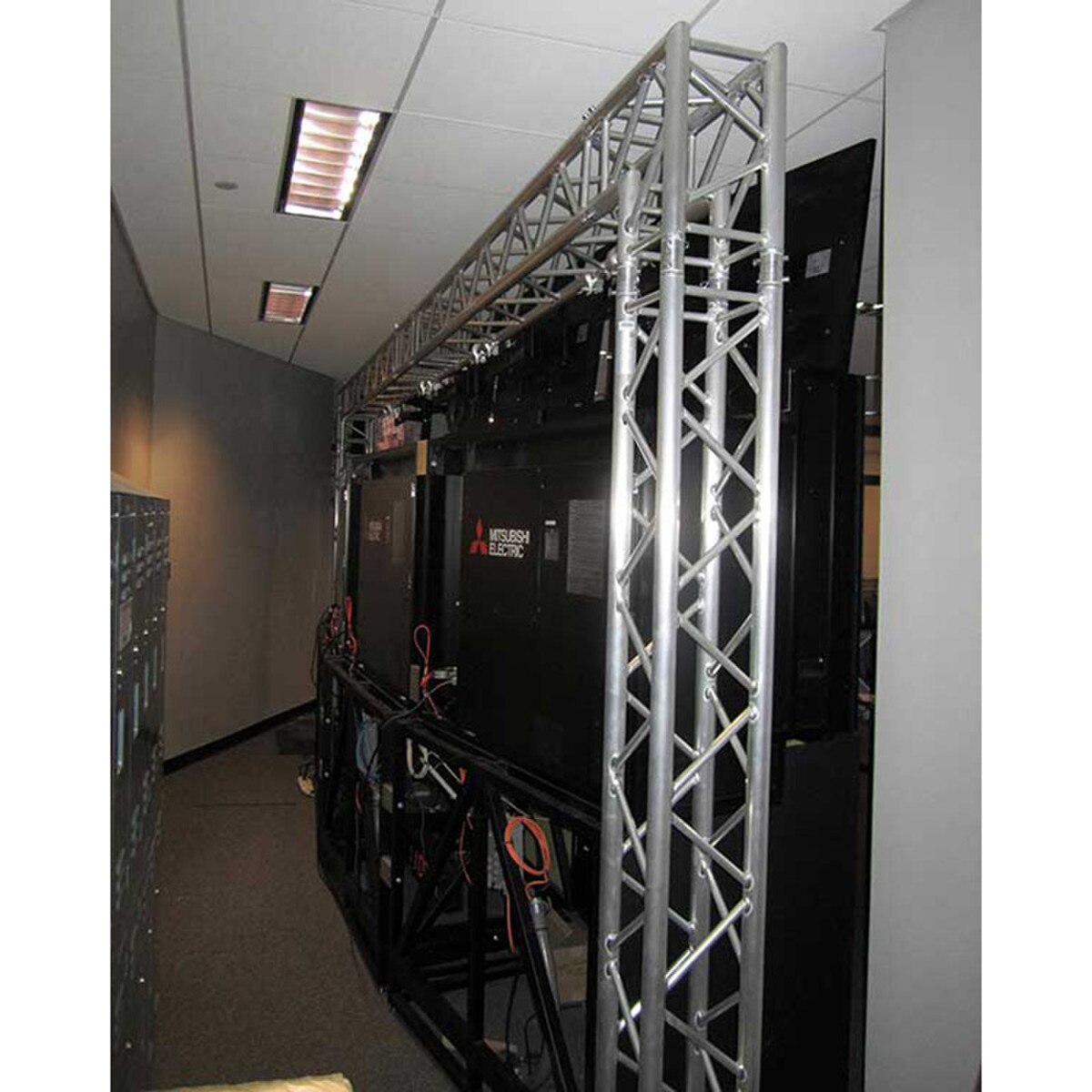

• Available in many lengths for mobile entertainers, productions, nightclubs and retail stores
• Includes connecting hardware

Specifications:

• Length: 8.2 ft (2.5 m)
• Outer diameter tube: 2 in (50 mm)
• Dimensions: 11.42 x 11.42 in (290 x 290 mm))
• Diagonal bracing: 0.75 in (20 mm)
• Wall thickness: 0.08 in (2 mm)
• Weight: 33 lbs (15 kg)
• Approvals: TUV, SLV
